VIAIR HEAVY DUTY ONBOARD AIR SYSTEM (12V, 150 PSI COMPRESSOR, 2.5 GAL. TANK)

(No reviews yet) Write a Review
MSRP: $479.95
$449.95
(You save $30.00 )
SKU:
VC-10005
Weight:
32.00 LBS
Shipping:
Free Shipping

Product Overview

VIAIR HEAVY DUTY ONBOARD AIR SYSTEM (12V, 150 PSI COMPRESSOR, 2.5 GAL. TANK)

Viair P/N 10005

FREE SHIPPING LOWER 48 STATES ONLY!!!


VIAIR’s Heavy Duty Onboard Air System is a pre-packaged compressed air solution that provides a faster 33% duty cycle 400C compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires right out of the box.

Please Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. lbs.

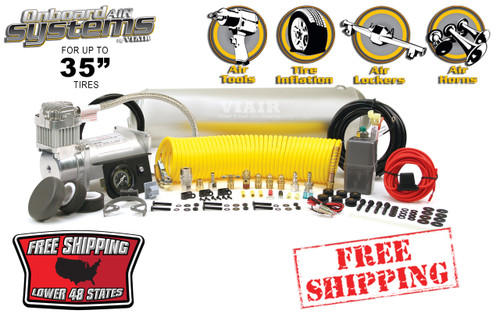

INCLUDED PARTS:

  • 2.5 Gallon VIAIR Air Tank
  • 400C VIAIR Compressor
  • 1/4” NPT Quick Connect Coupler (M)
  • Dash Panel Gauge with ON/OFF Switch
  • Pressure Switch with Relay (110 PSI on, 150 PSI off)
  • Reducer (1/8” NPT F to 1/4” NPT M)
  • 1/4” NPT 175 PSI Safety Valve
  • 1/4” NPT Drain Cock
  • 4” Strip of Continuous Grommet Material
  • 20ft. 12-Gauge Wire with Inline Fuse Holder
  • Electrical Connections

SPECIFICATIONS:

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 33% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Amp Draw: 26 Amps
2.5 Gallon Tank Fill Rate
0 to 145 PSI 2 min. 20 sec.
110 to 145 PSI 48 sec.



33" x 12.5" Fill Rate
0 to 30 PSI 4 min. 00 sec.
15 to 30 PSI 2 min. 00 sec.



35" x 12.5" Fill Rate
0 to 30 PSI 4 min. 50 sec.
15 to 30 PSI 2 min. 20 sec.







 warning-triangle-ca-final-01.pngWARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
