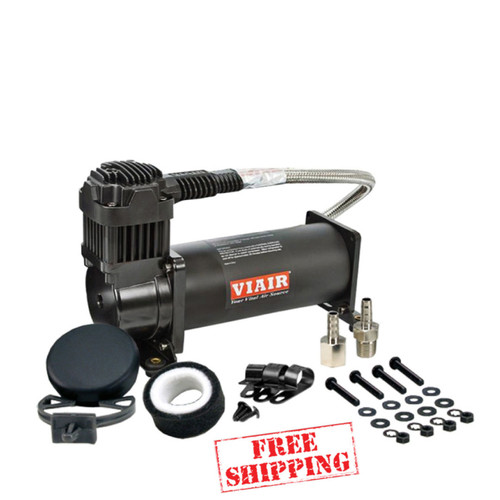

BLACK VIAIR 400C COMPRESSOR
400C is a 33% duty cycle compressor that works quickly and efficiently putting out 2.54 CFM flow at zero PSI head pressure. Features include a standard 1/4” NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.
Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
INCLUDED PARTS:
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
SPECIFICATIONS:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 33% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Amp Draw: 32 Amps
- Dimensions: 9"L x 4"W x 6.75"H
- Net Weight: 8.65 lbs.
| 2.5 Gallon Tank | Fill Rate |
| 0 to 105 PSI | 1 min. 27 sec. |
| 85 to 105 PSI | 17 sec. |
| 0 to 145 PSI | 2 min. 20 sec. |
| 110 to 145 PSI | 48 sec. |
| 5.0 Gallon Tank | Fill Rate |
| 0 To 105 PSI | 2 min. 55 sec. |
| 85 To 105 PSI | 35 sec. |
| 0 to 145 PSI | 4 min. 50 sec. |
| 110 to 145 PSI | 1 min. 40 sec. |
